Product Description

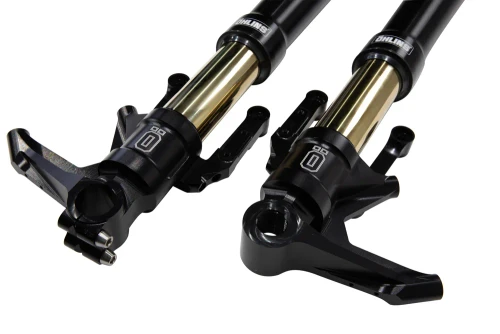

The American V-Twin 48 Blackline Fork marks the debut of Öhlins’ front-end suspension technology for Harley-Davidson. It features a weight- and stress-optimized fork bottom design for an ultra-smooth, comfortable ride, along with updated Öhlins logos to enhance the Blackline aesthetic. Incorporating cutting-edge technology, it is designed to elevate the riding experience for Harley-Davidson enthusiasts.

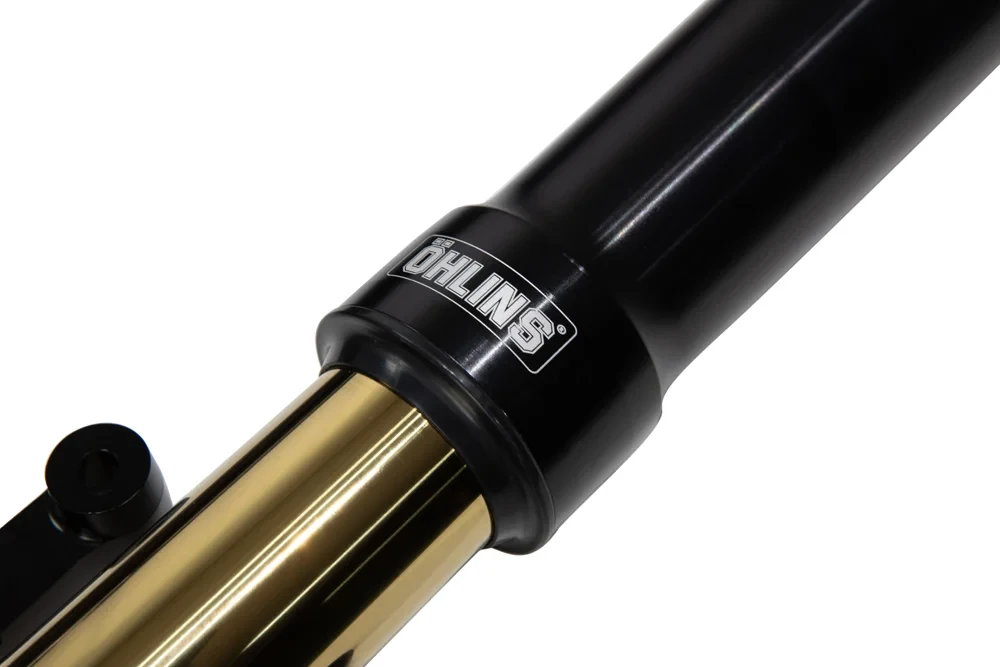

Drawing on Öhlins' racing heritage, the fork incorporates a 30 mm NIX damping system, which isolates compression and rebound damping for enhanced precision and stability. The fork’s inner tubes are also treated with a titanium nitrate coating to reduce friction, contributing to an ultra-plush ride quality.

Upgrade your bike with this must-have front fork and experience the difference of Öhlins suspension.

FEATURES

• NIX technology
• Separate rebound and compression adjustment
• Spring preload adjustment in the top cap
• Fork bottom design inspired by Bagger Racing
• Signature Blackline design with black outer tubes and fork bottoms

SPECS

Damp tech: FGRT
Length: 730 mm
Oil: Öhlins 01309
Spring: 04744-12
Spring Rate: 12 N/mm
Stroke: 117 mm
TÜV: Yes

FITMENT

• 2023+ CVO Road Glide
• 2024+ CVO Road Glide ST
• 2023+ CVO Street Glide

*For 19" front wheel use only.*

NOTE: Does not fit standard Road/Street Glide models.

Compatible with Kraus Wolf One Top Clamp ('23+ CVO)
