Product Description

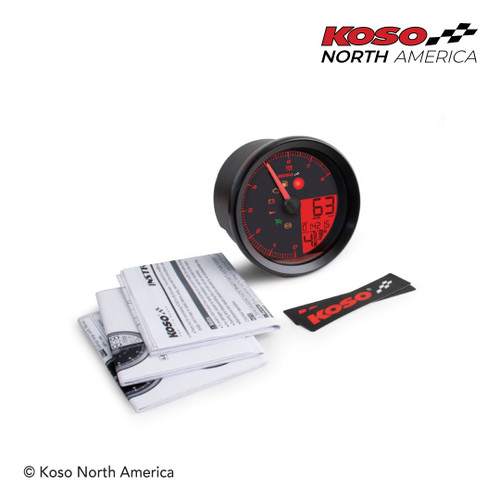

You can now customize your sportster with our high‑quality plug & play meter that is equipped with a 8 color changeable LCD display. Its stepper motor provides a precise and fast response so that you can get accurate real time information. Some of the great functions this meter has to offer are : speed, RPM, indicator lights, fuel level, and gear position indicator. Available in silver or black bezel, this is a great modern update for your sportster.
*Fits models with bar mounted gauge
Specs: (R= Range U=Unit)
- Speedometer
R: 0 ~ 225 MPH (0 ~ 360 km/h)
U: 1 MPH or km/h - Odometer
R: 0 ~ 999,999 miles (km) U: 1 mile (km) - Tripmeter A/B
R: 0 ~ 9,999.9 miles (km)
U: 0.1 mile (km) - Tachometer
R: 0 ~ 8,000 RPM | U: 100 RPM - Shift light warning
R: 2,000 ~ 8,000 RPM
U: 100 RPM Warning light on ≥ value - Maximum RPM warning mode
R: light on (F-OFF) flash (F-ON) - Tire circumference
R: 50 ~ 210 % | U: 1 % - Engine temperature meter
R: -40 ~ 419 °F (-40 ~ 215 °C)
U: 1 °F or °C (alternative)
- Fuel level
R: 6 levels | U: 1 level = 16.67% - Clock
R: 12 H or 24 H format - Backlight colors
White / Light Blue / Blue / Purple / Red / Orange / Yellow / Green - Gear indicator
R: Off, N, 1, 2, 3, 4, 5 - Indicator lights
Security light / Check engine /
Cruise light / Low fuel warning / Battery discharge light / ABS / Anti-theft - Effective temperature range
14 ~ 140 °F (‑10 ~ 60 °C) - Effective voltage

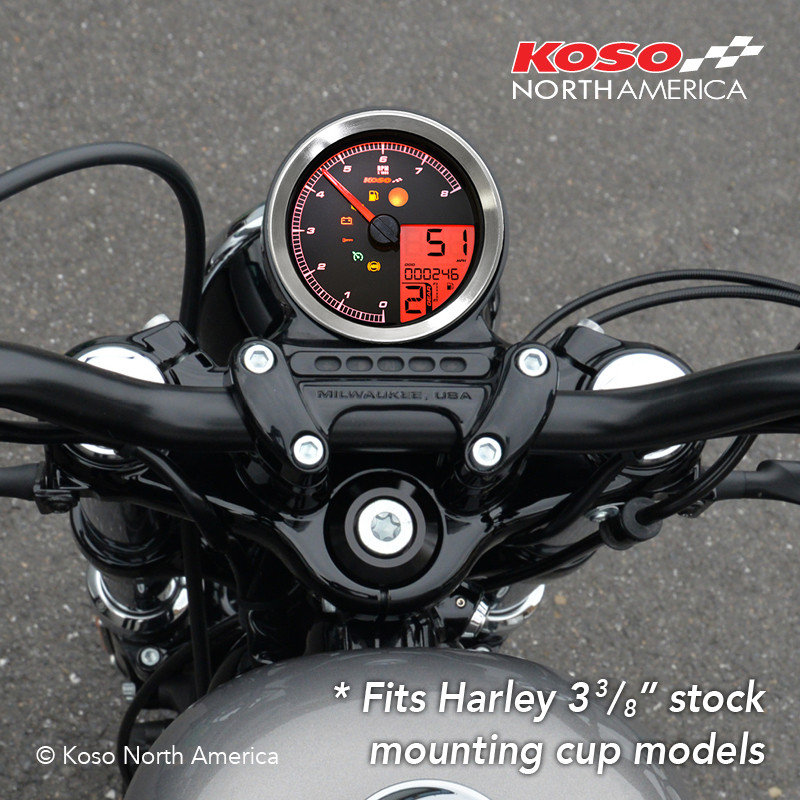

DC 12 V - Fits Harley 3 3/8” stock meter mounting cup models
NOTE: Kraus Motor Co. products are designed and engineered to be compatible with OEM fitments.
Downloads
Instructions
